Dragonframe DMC-32
DRAGONFRAME MASTER CONTROLLER

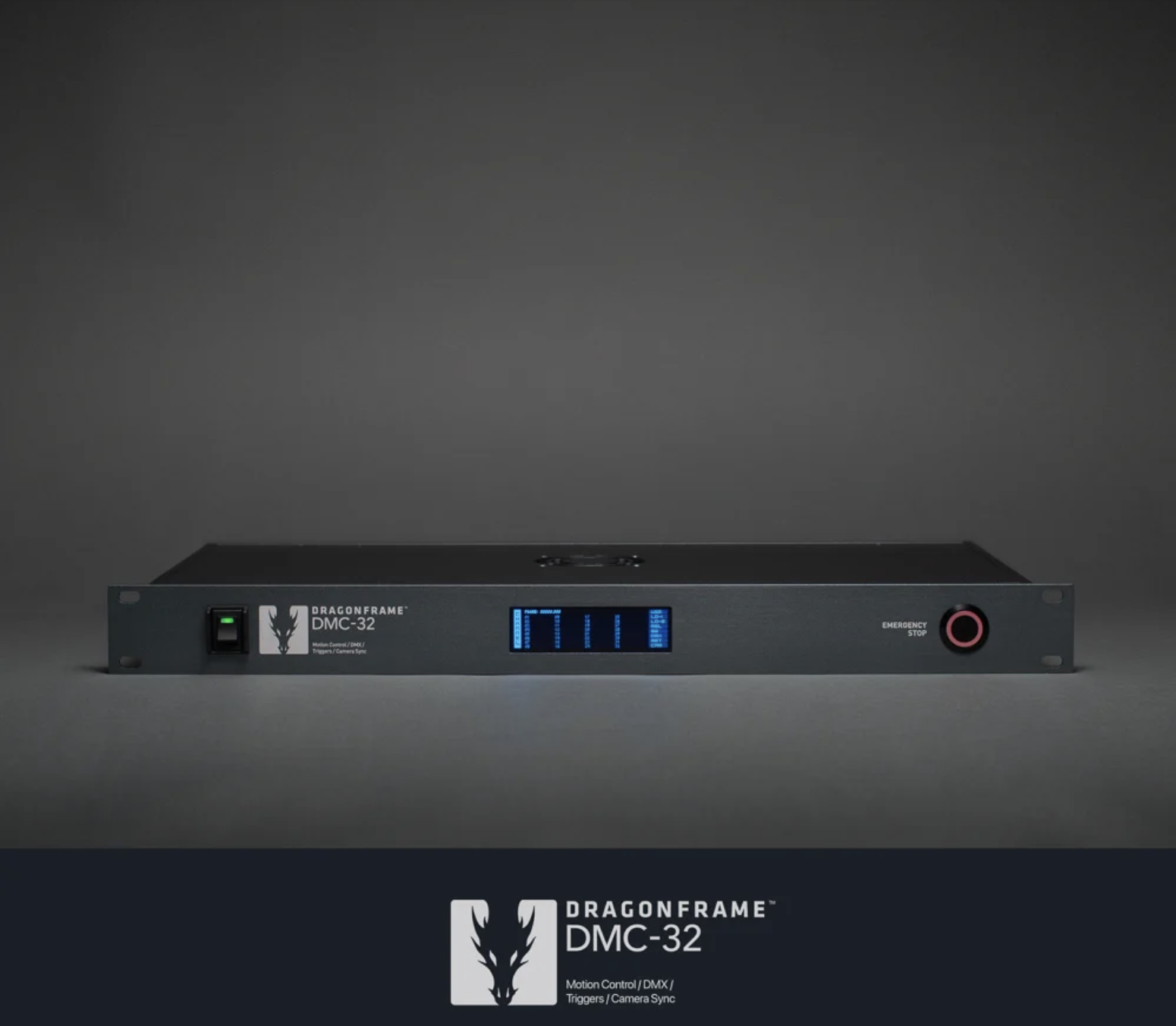

The DMC-32 (Dragonframe Master Controller) is a 32 axis motion control coordinator for use with Dragonframe software.

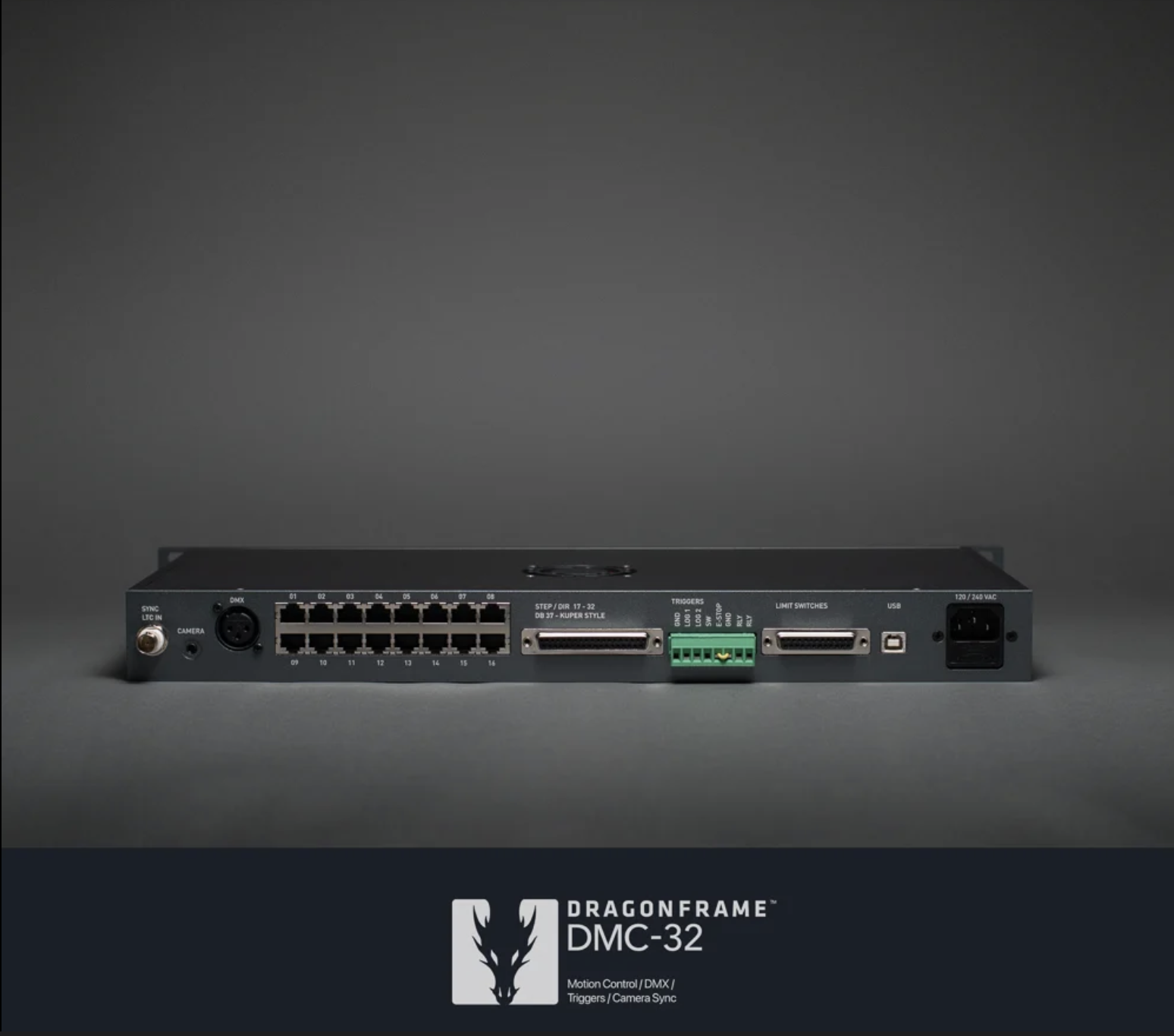

It provides 32 channels of fully synchronized step and direction signals at speeds up to 200kHz, a camera trigger, DMX512 lighting control, limit switch inputs, and a set of triggers for interfacing with an external device.
The DMC-32 is the next generation of our DMC-16 product. Here are the main differences:
Outputs 32 channels instead of 16. (The DB37 carries channels 17-32 instead of repeating 1-16.)
Powered by the improved Zynq 7Z020 processor (instead of DE0-Nano).
LTC input for perfectly synchronized, repeatable live-action passes.
Integrated fan for temperature control.
Uses a 3.5mm TRS input (mini stereo headphone jack) for camera shutter/meter instead of XLR.
THIS DESCRIPTION IS STRAIGHT OUT OF THE DRAGONFRAME WEBSITE (THANK YOU, DRAGONFRAME) WE ARE A RETAILER OF THE DMC-32. OUR PRICE WILL ALWAYS BE THE SAME PRICE AS ON THE DRAGONFRAME SITE.
IF THE DMC-32 PRICE CHANGES ON THE DRAGONFRAME SITE AND WE HAVE NOT CHANGED OUR PRICING, WE WILL NOTIFY YOU OF THIS AND CHARGE THE DIFFERENCE BEFORE IT IS SHIPPED!
